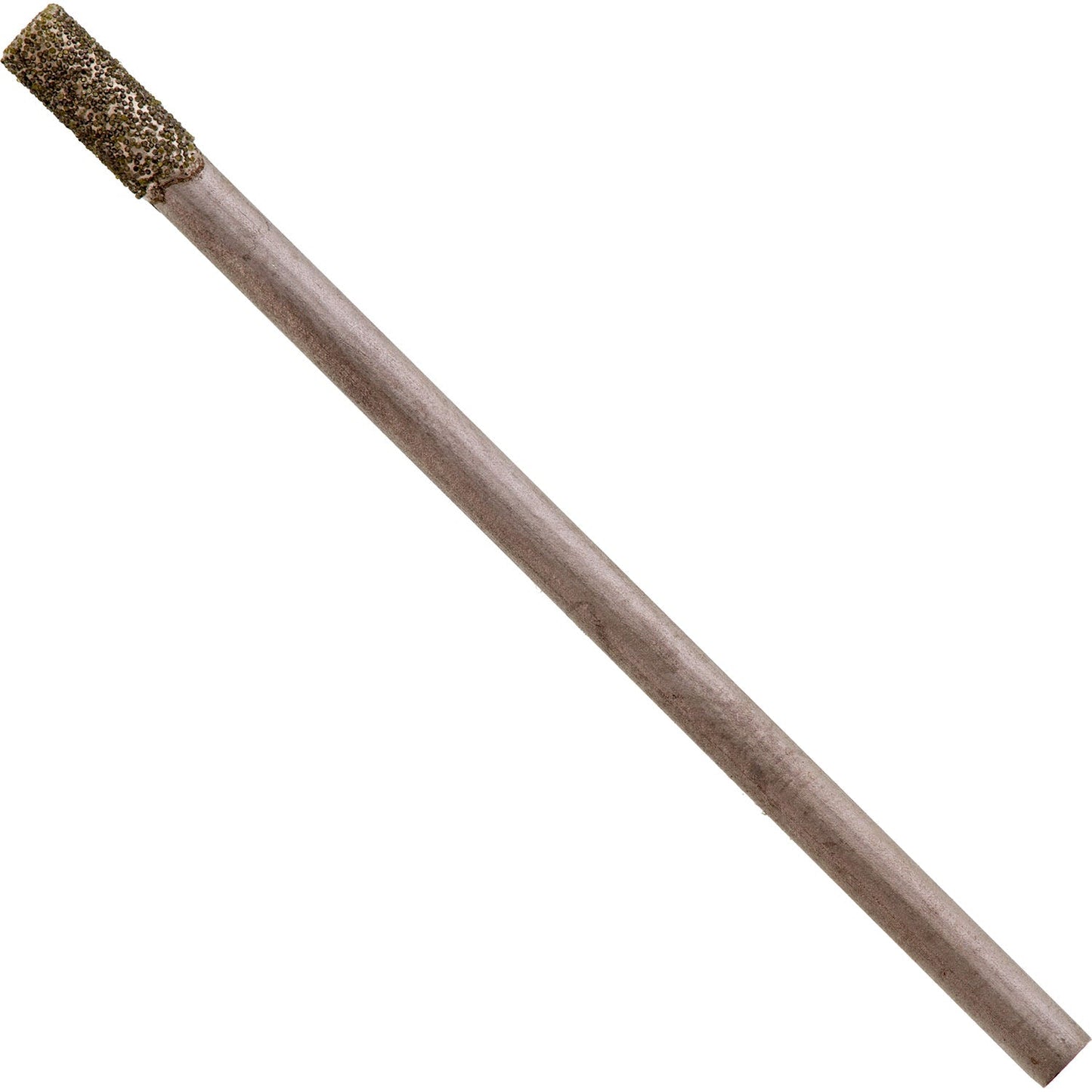

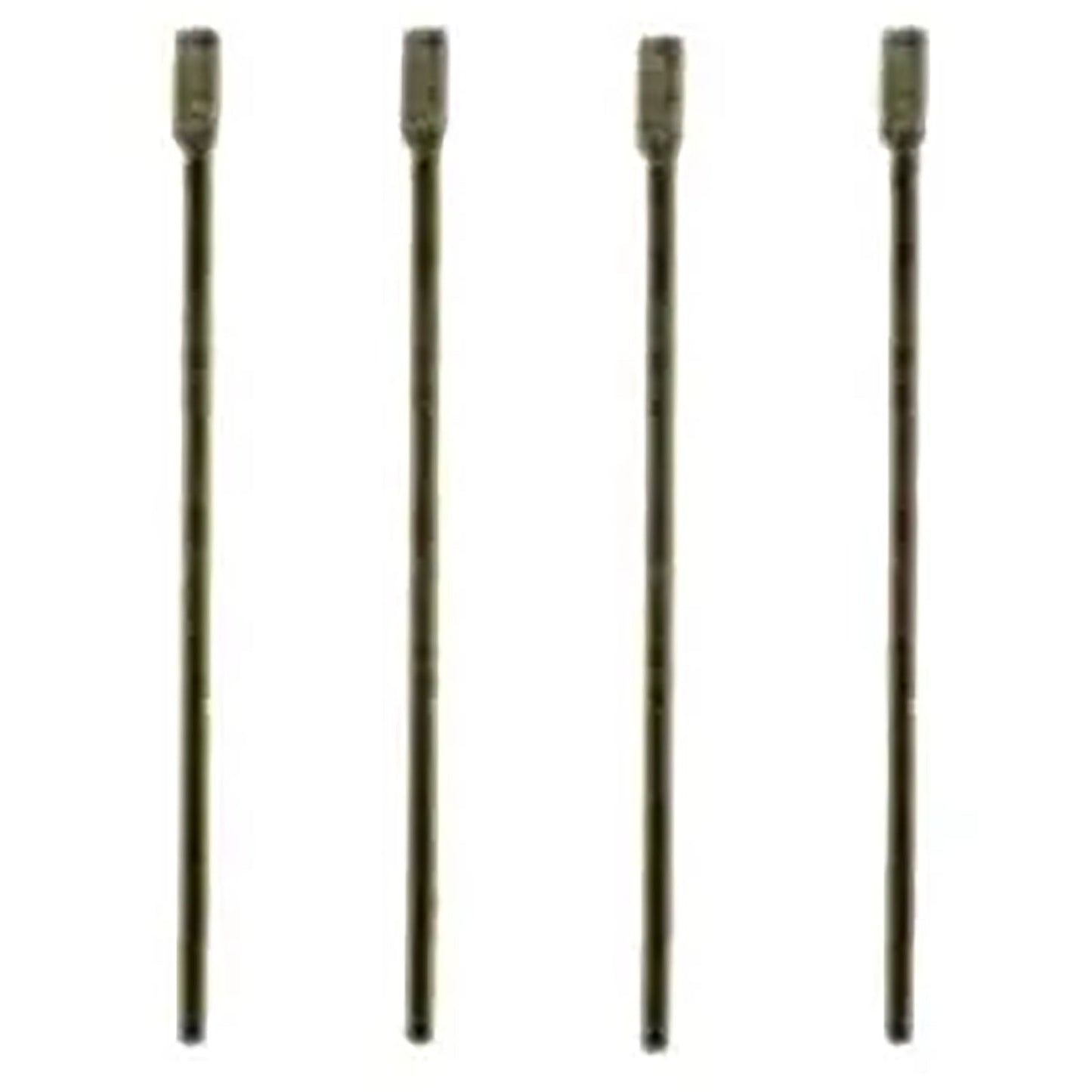

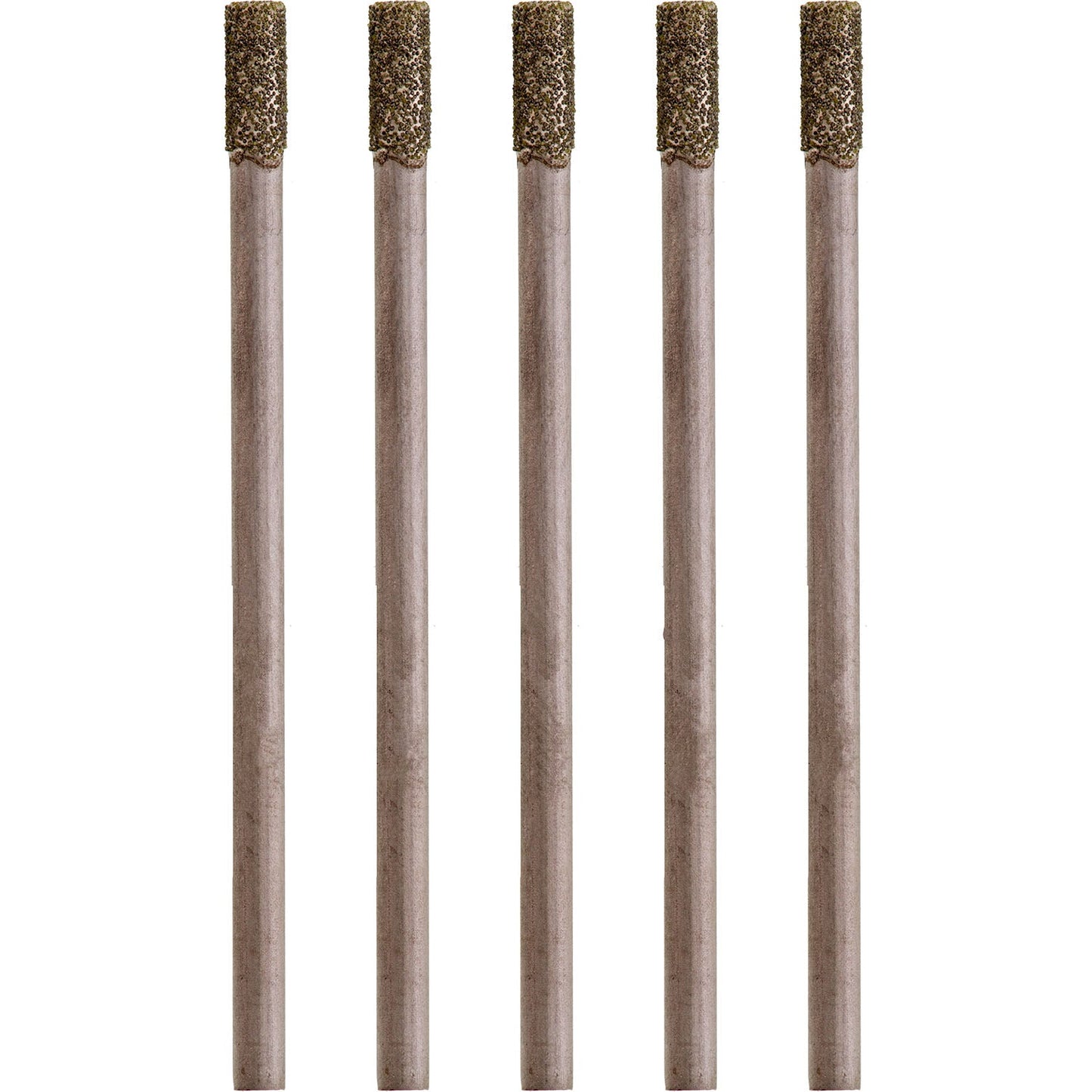

Jeweler's Basics® - Small Diamond Drill, 0.75 - 2.50mm

Suitable for gemstone, glass, ceramics and all other hard material.


Diamond Drills

 IMPORTANT!

• Start hole by allowing only a minimum amount of drill tip to protrude beyond the collet or chuck jaws since shank size is only .020.
• Once the hole is started, adjust drill length as necessary.
• Run at 10,000 rpm minimum or more.
• Submerge in water or use constant flow.
• Use drill press. Handheld tools are not recommended.
• Use rapid up or down motion when drilling, light to moderate pressure.
• IMPORTANT: Always recognize that the drill tip must always have coolant. A combination of excessive speed, pressure, dwell without lifting the drill, will deprive the drill of water and the tip may overheat and poof!

 Note: Automatic drills do not have sufficient pressure. Use hand feed.
